N. S. TECHNOCRAFT We are manufacturing a full range of Hospital Furniture like Hospital Bed, Bedside Furniture, Patient Transfer Trolley, Labour Room Tables, OT Table and OT Lights, Medicine and Equipment Trolley etc.

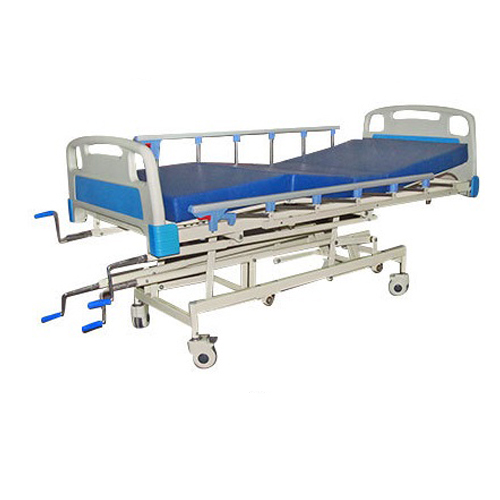

ICU Mechanical Bed (NST-01)
• Frame Work : Rectangular MS Tube• Sheet/Top : 4 Section Top made by perforated CRCA Sheet
• Positions : Back Rest (0-70 D), Knee Rest (0-40 D), Trendlenburg (0-70 D), /Reverse Trendlenburg (15 D) • & High-Low (500-900 mm) position by Super Smooth Crank Screw Mechanism
• Panel : ABS molded head and foot bows panle (Detachable)
• Side Railing : Collapsible safety side railings (Option for SS / Alminium)
• I.V. Rod : 4 Locations position and one IV Rod with 2 or 4 hooks
• Stand on : Bed mounted on 125mm Dia 4 Casters, 2 with break
• Size : Length : 2100-2200 mm, Width= 900-1050 mm, Height Adjustment- 500 to 900 mm
• Finish : Pre-treated and Epoxy Powder Coated finish
• Attachments : 4 Fold Mattress, One Telescopic SS I.V. Rod
PRODUCT ENQUIRER
ICU Mechanical Bed with SS Panel & SS Up & Down Railing (NST-02)
• Frame Work : Rectangular MS Tube• Sheet/Top : 4 Section Top made by perforated CRCA Sheet
• Positions : Back Rest, Knee Rest , TB/RTB & Hi-Lo position by Screw System
• Panel : Laminated Wooden Panel fitted with SS Pipe in head and foot bows
• Side Railing : SS Pipe safety side railings (Collapsible/Up & Down)
• I.V. Rod : 4 Locations position
• Stand on : Bed mounted on 125mm Dia Caster with break
• Size : L = 210 cms, W= 90 cms, H= 50-70 cms
• Finish : Pre-Treated and Epoxy Powder Coated (Ivory or required color)
• Attachments : 4 Fold Mattress and one Telescopic I.V. Rod in SS Rod with MS Pipe Fittings.
PRODUCT ENQUIRER

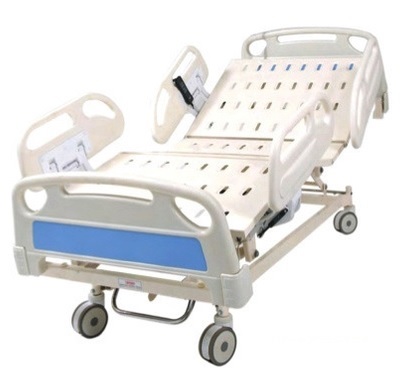

ICU Electric Bed (NST-0306)
• Frame Work : Rectangular MS/CRC Tube• Sheet/Top : 4 Section Top made by perforated MS/CRC Sheet
• Positions : Back Rest, Knee Rest , TB/RTB & Hi-Lo position obtained by Electric Actuator operated by Hand Remote System
• Panel : ABS molded head and foot bows
• Side Railing : ABS molded tuck away safety side railings
• I.V. Rod : 4 Locations position
• Stand on : Bed mounted on 125mm Dia Caster with Central Braking System
• Size : L = 220 cms, W= 95 cms, H= 50-90 cms or as per buyers requirements
• Finish : Pre-Treated and Epoxy Powder Coated
• Attachments : 4 Fold Mattress and one Telescopic I.V. Rod in SS Rod with MS Pipe Fittings.
PRODUCT ENQUIRER

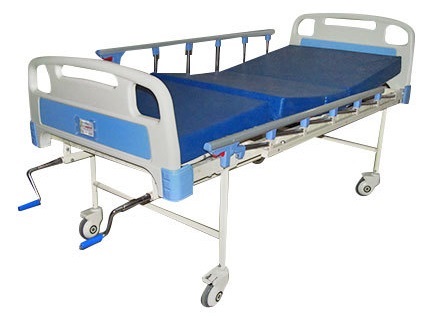

Full Fowler Bed (ABS Panel) (NST-05.55)
• Frame Work : Rectangular MS tube
• Mattress Platform : 4 sections top made by perforated CRCA sheet
• Positions : Back rest & Knee rest adjustment through two screw system from foot end
• Panel : Detachable ABS Panel fitted in head and foot bows
• Side Railing : Not supplied
• I.V. Rod : 4 location position with one four hook IV Rod
• Leg Stand on : 125 mm Four Caster (2 with break) on H type Leg
• Bed Platform Size : 2070 mm x 910 mm W and 600 mm H
• Mattress Platform Size : 1970 mm x 790 mm W
• Overall Length : Buffer to Buffer - 2275 mm
• Finish : Pre-treated and Epoxy Powder Coated finish
• Mattress : 4 Section Mattress of 100 mm Foam covered with blue PVC Rexine
PRODUCT ENQUIRER
Full Fowler Bed (SS Panel) (NST-06A)
• Frame Work : Rectangular MS Tube• Sheet/Top : 4 Section Top made by perforated CRCA Sheet
• Positions : Back & Knee Rest section maneuvered by two separate Screw from foot end
• Panel : Laminated Wooden Panel fitted with SS Pipe in head and foot bows
• Side Railing : Collapsible or Drop down
• I.V. Rod Position: 4 Locations (position only, One IV Rod supplied)
• Bed Stand on : Bed mounted on 125mm Dia 4 Casters (2+2)
• Size : L = 2070 mm x W= 910 mm, H= 600 mm
• Overall Length : 2275 mm including 100mm Corner Buffer
• Finish : Pre-treated and Epoxy Powder Coated
• Mattress : 4 fold Mattress of 100mm Foam covered with Blue PVC Rexine
PRODUCT ENQUIRER

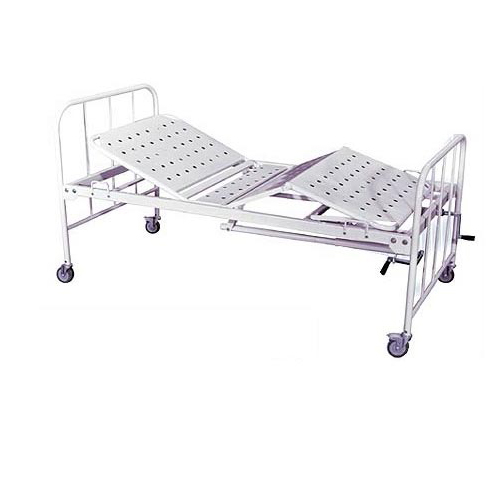

Full Fowler Bed Standard (MS Panel) (NST-06B)
· Tubular head and foot bows of unequal height with vertical tube support
· Frame work made of mild steel tube
· Four section top made up of perforated CRCA mild steel sheet
· Backrest and knee-rest adjustable by two separate crank levers from foot end
· Provision of fixing I.V. rod at four locations
· Mounted on four castors of 10cms dia two with brakes
· Pre-treated and epoxy powder coated finish
· Knock down construction
· Size: 2030 x 950 x 600mm
PRODUCT ENQUIRER
Plain Hospital Bed (NST-1120)
• Frame Work : Rectangular MS Tube of 25x50x1.2 mm dia• Sheet/Top : Single Section CRCA Sheet Top with holes
• Panel : MS Tubular 31 mm x 1.2 mm dia head and foot bows of 350 mm height
• I.V. Rod : 4 position at all corners
.• Overall Size : L = 2010 mm, W= 963 mm, H= 618 mm
• Finish : Pre-treated and Epoxy Powder Coated

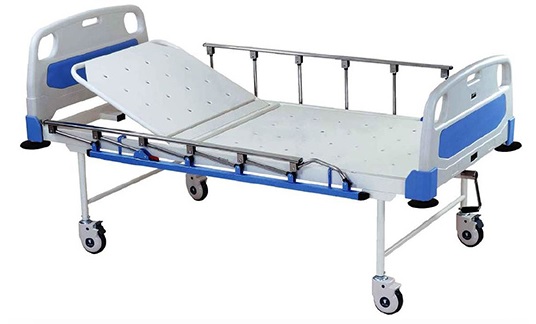

Semi Fowler Bed Deluxe (ABS Panel) (NST-0802)
• Frame Work : Rectangular MS Tube• Sheet/Top : 2 Section Top made by perforated CRCA Sheet
• Positions : Back Rest section maneuvered by Screw Handle from foot end
• Panel : ABS molded Panel in head and foot bows
• Safety Railing : Aluminum / Steel Collapsible Safety Side Railing
• I.V. Rod : 4 Locations (position only) and one adjustable IV Rod
• Leg Stand on : 125mm dia four Caster (2 with Break)
• Size : L = 2070 mm, W= 910 mm, H= 600 mm
• Finish : Pre-treated and epoxy powder coated finish
• Additional options : 2 fold Mattress
PRODUCT ENQUIRER
Semi Fowler Bed Deluxe (SS Panel) (NST-07)
• Frame Work : Rectangular MS Tube• Sheet/Top : 2 Section Top made by perforated CRCA Sheet
• Positions : Back Rest section maneuvered by Screw from foot end
• Panel : Laminated Wooden Panel fitted with SS Pipe in head and foot bows
• I.V. Rod : 4 Locations (position only)
• Leg Stand on : PVC stumps
• Size : L = 206 cms, W= 90 cms, H= 60 cms
• Finish : Pre-Treated and Epoxy Powder Coated (Ivory or required color)
•Additional options : 2Fold Mattress, SS Side Railing, I.V. Rod and Wheel Castor.
PRODUCT ENQUIRER
Semi Fowler Bed (NST-09)
• Frame Work : Rectangular MS Tube• Sheet/Top : 2 Section Top made by perforated CRCA Sheet
• Positions : Back Rest section maneuvered by Screw Handle from foot end
• Panel : MS Tubular Panel in head and foot bows
• I.V. Rod : 4 Locations and one SS IV Rod
• Leg Stand on : PVC stumps
• Size : L = 2070 mm x W= 910 mm, H= 600 mm (Overall Size : 2275 mm)
• Finish : Pre-treated and Epoxy Powder Coated (Ivory or required color)
PRODUCT ENQUIRER
Pediatric Bed (MS Tubular Panel) (NST-10)
• Frame Work : Rectangular MS Tube• Sheet/Top : Single Section perforated CRCA Sheet Top
• Positions : Plane
• Panel : Tabular head and foot bows of equal height with vertical tube support on PVC Stumps
• Side Railing : Drop Down Full Length Safety Side Railings of MS Tube
• I.V. Rod : 2 Locations (position only, IV Stand additional)
• Leg Stand on : Tabular Panel Supported on PVC Stumps
.• Size : L = 176 cms, W= 80 cms, H= 60 cms
• Finish : Pre-treated and Epoxy Powder Coated
• Additional options : Plane Mattress / I.V. Rod /Wheel Castor
