N. S. TECHNOCRAFT We are manufacturing a full range of Hospital Furniture like Hospital Bed, Bedside Furniture, Patient Transfer Trolley, Labour Room Tables, OT Table and OT Lights, Medicine and Equipment Trolley etc…

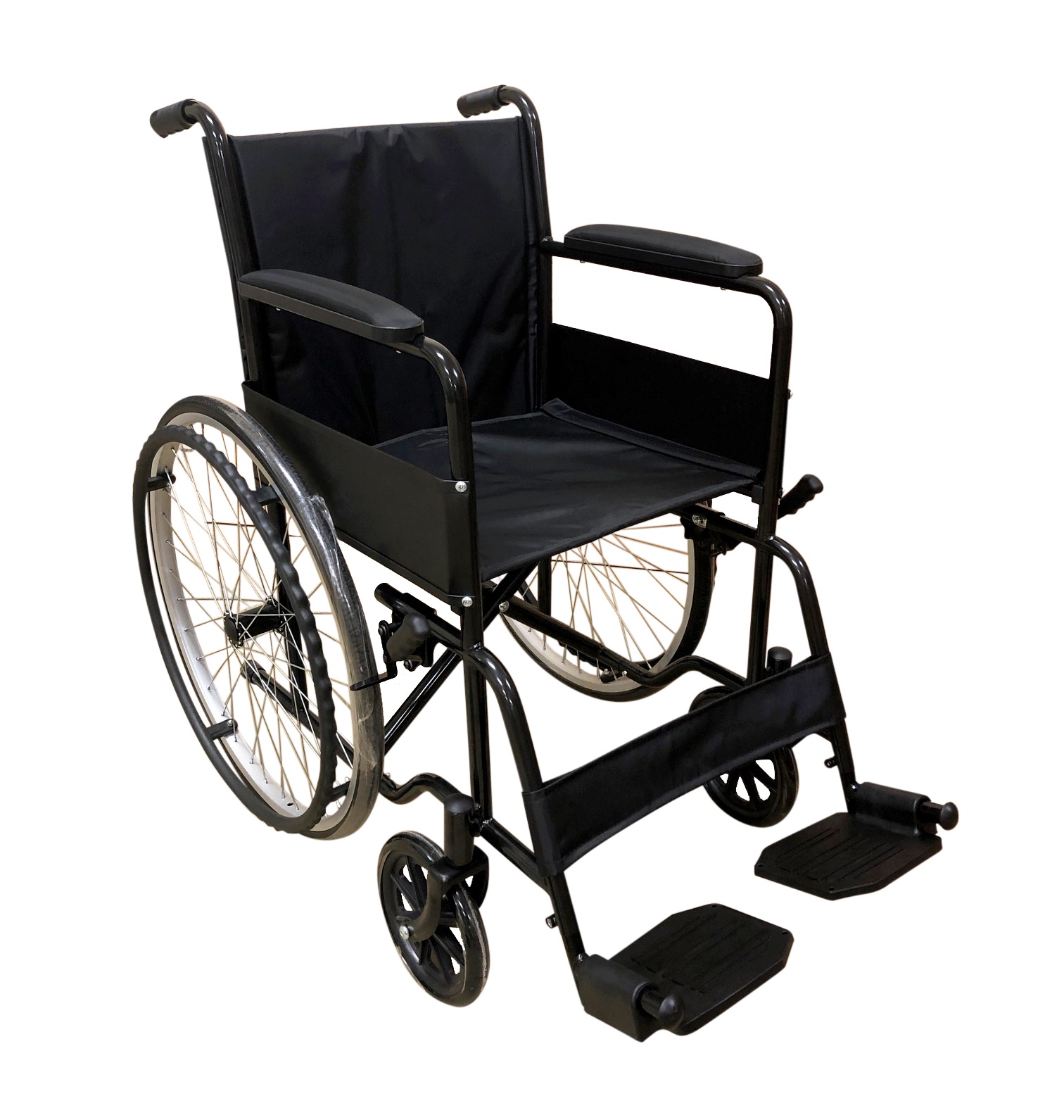

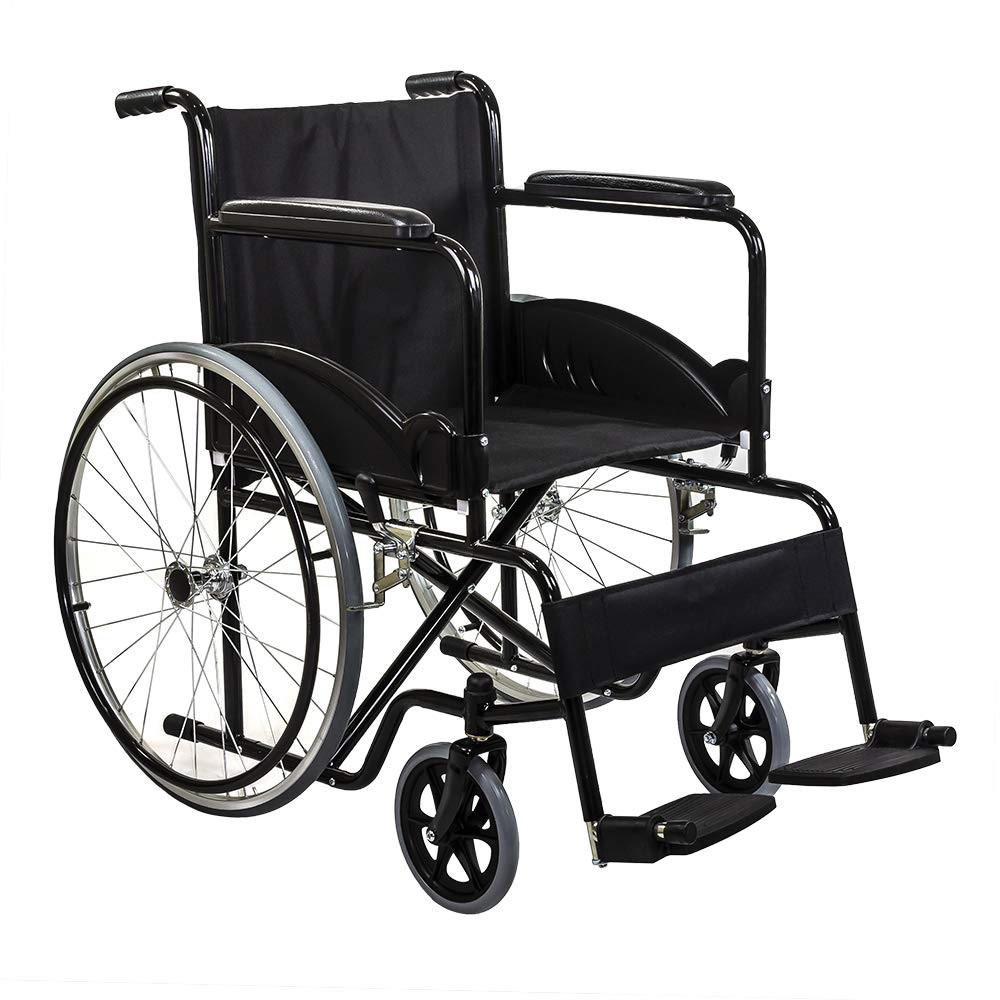

Wheel Chair - Folding (NST-36A)
Total weight of Wheel Chair (Kg) : 20Back rest with Cushion : Yes
Cushion on Seat : With
Leg guard type : Detachable and Elevating
Slope of Seat (Degree) : 0
Type of Backrest : Foldable
Overall Length (mm) : 500
Foldable : Yes
Types of Wheel Chairs : Attendant Controlled Non Powered
Frame tube thickness (mm) : 22
Clearance of frame from floor (mm) : 150
Overall Height (mm) : 820
Loading Capacity (Kg) : 115
Arm rest Type : Fixed
Cushion Material Thickness (mm) : 35
Seat Depth (mm) : 440
Distance between seat and foot rest (mm) : 130
Clearance of footrest from floor (mm) : 100
Finish of Aluminium casts : Anodiezed
Hand Rim : with
Handle for push/pull action of Wheel Chair : Yes
Thickness of Seat (mm) : 44
Slope of the backrest with respect to floor (Degree) : 160
Rear wheel tyre type : Solid
Arm rest height from seat (mm) : 100
Cushion on Arm rest : With
Types of foot rest : Swinging with Height Adjustment
Warranty (Years) : 1
Frame tube Dia (mm) : 21
Width of wheel chair : Fixed
Seat Height : Fixed
Seat height from floor at the front (mm) : 470
Thickness of back rest (mm) : 35
Painting of mild steel components : Powder Coated
Certification : ISO 9001, CE, ISO 13485

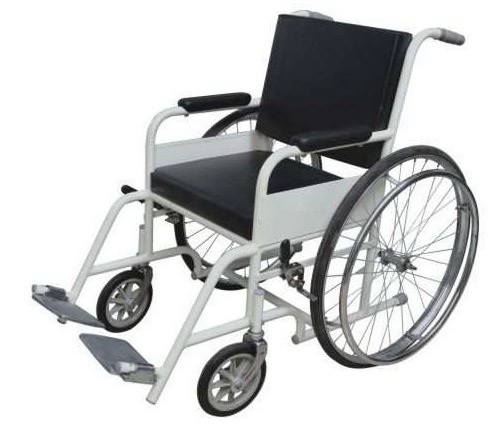

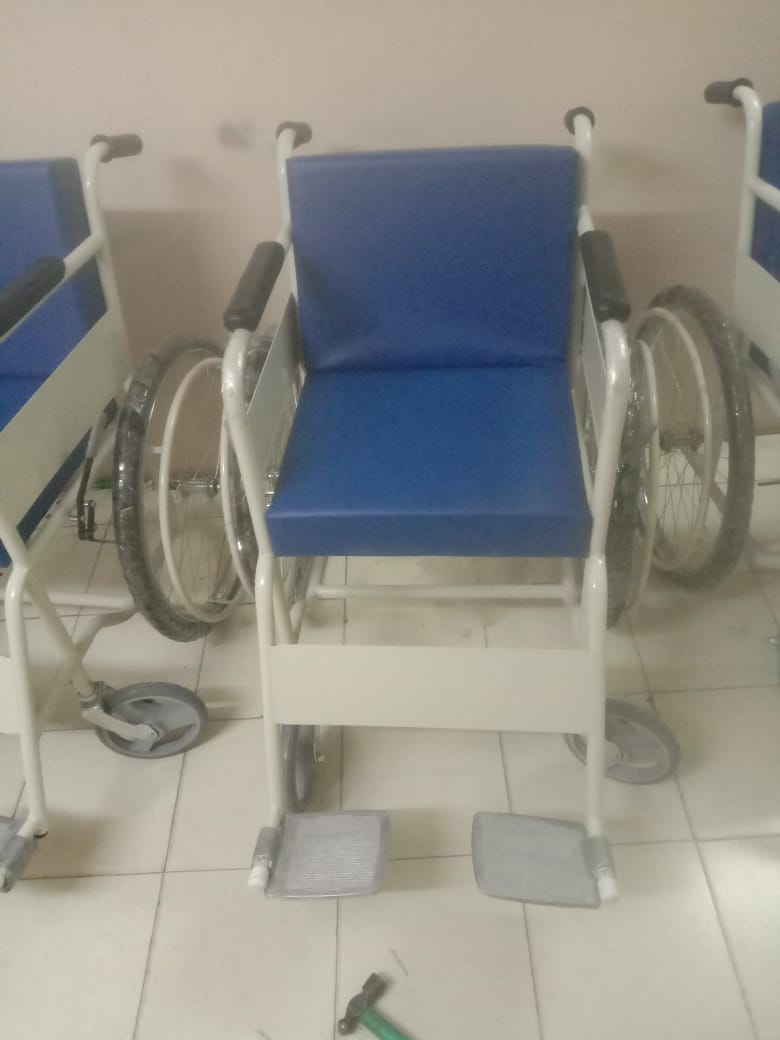

Wheel Chair (Fixed) (NST-36B)
-
Total weight of Wheel Chair (Kg) : 10-20
Back rest with Cushion : Yes
Cushion on Seat : With
Leg guard type : Fixed
Slope of Seat (Degree) : 1
Type of Backrest : Fixed
Overall Length (mm) : 1-1023
Foldable : No
Types of Wheel Chairs : Attendant Controlled Non Powered
Frame tube thickness (mm) : 1.2
Clearance of frame from floor (mm) : 110
Overall Height (mm) : 1-913
Loading Capacity (Kg) : 130
Arm rest Type : Fixed
Cushion Material Thickness (mm) : 65
Seat Depth (mm) : 430
Distance between seat and foot rest (mm) : 440
Clearance of footrest from floor (mm) : 1-110
Finish of Aluminium casts : Anodiezed
Hand Rim : with
Handle for push/pull action of Wheel Chair : Yes
Thickness of Seat (mm) : 1.2
Slope of the backrest with respect to floor (Degree) : 95
Rear wheel tyre type : Solid
Arm rest height from seat (mm) : 1-125
Cushion on Arm rest : With
Types of foot rest : Swinging without Height Adjustment
Warranty (Years) : 1
Frame tube Dia (mm) : 25.4
Width of wheel chair : Fixed
Seat Height : Fixed
Seat height from floor at the front (mm) : 500
Thickness of back rest (mm) : 1.2
Painting of mild steel components : Powder Coated
Certification : ISO 9001, CE, ISO 13485

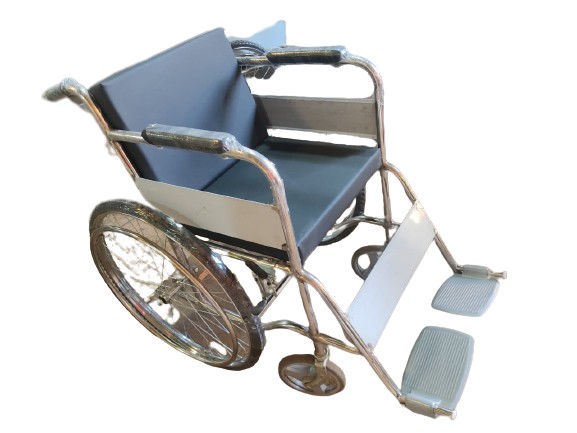

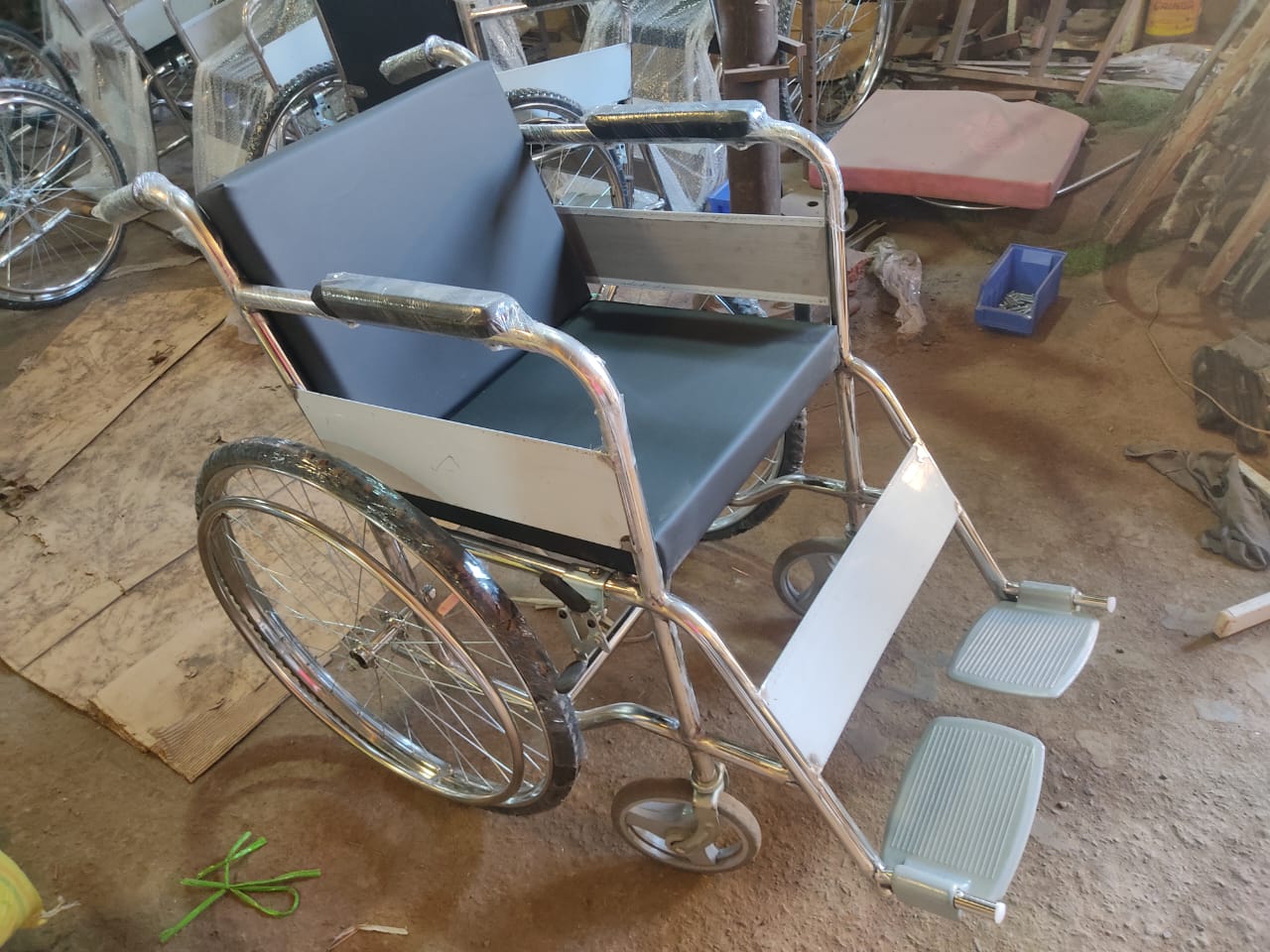

Wheel Chair-Fixed (SS) (T101)
-
Total weight of Wheel Chair (Kg) : 20
Back rest with Cushion : Yes
Cushion on Seat : With
Leg guard type : Fixed
Slope of Seat (Degree) : 0
Type of Backrest : Fixed
Overall Length (mm) : 1070
Foldable : No
Types of Wheel Chairs : Attendant Controlled Non Powered
Frame tube thickness (mm) : 22
Clearance of frame from floor (mm) : 100
Overall Height (mm) : 920
Loading Capacity (Kg) : 140
Arm rest Type : Fixed
Cushion Material Thickness (mm) : 50
Seat Depth (mm) : 460
Distance between seat and foot rest (mm) : 500
Clearance of footrest from floor (mm) : 190
Finish of Aluminium casts : Buffing
Hand Rim : With
Handle for push/pull action of Wheel Chair : Yes
Thickness of Seat (mm) : 75
Slope of the backrest with respect to floor (Degree) : 0
Rear wheel tyre type : Solid
Arm rest height from seat (mm) : 19
Cushion on Arm rest : With
Types of foot rest : Swinging without Height Adjustment
Warranty (Years) : 1
Frame tube Dia (mm) : 25
Width of wheel chair : Fixed
Seat Height : Fixed
Seat height from floor at the front (mm) : 630
Thickness of back rest (mm) : 1.2
Painting of mild steel components : NA
Certification : ISO 9001, CE, ISO 13485
