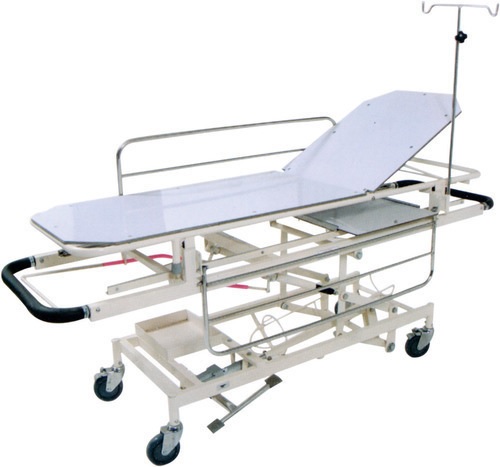

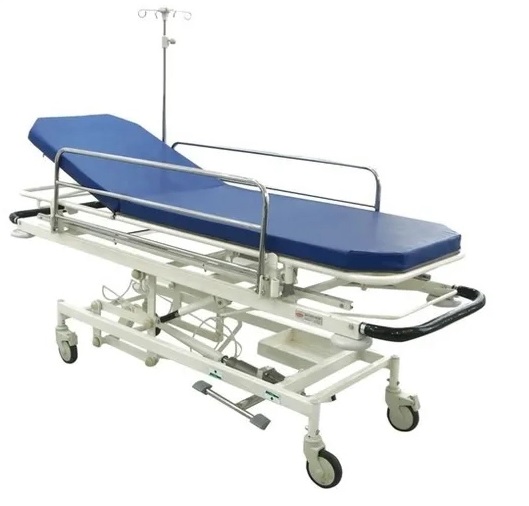

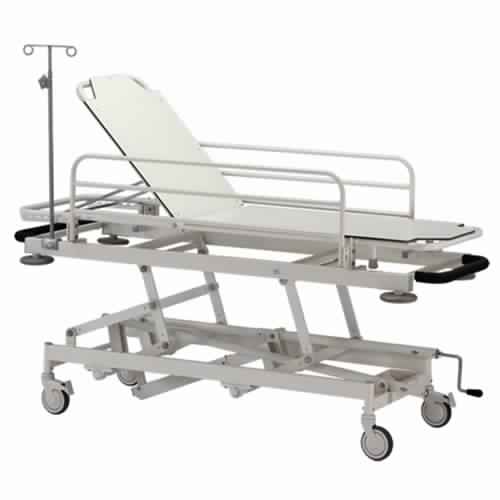

Emergency Recovery Trolley – Hospital Furniture

Material of Bed Frame : Mild Steel
Corner Bumpers: With
Side rail : Non-Collapsible
Height of side rail from patient Surface : 375 mm
Overall Length of patient transfer trolley : >=2000 mm to 2100 mm
Material of side rail : Stainless Steel
Type of back rest section tilt : Step less Type / Continuous Type
RH and LH Fastening Belt : With, Without
Overall Width of Patient Transfer Trolley (mm) : 850 mm up to 900 mm / 900 mm to 950 mm

Type of Mattress : Section matching with the mattress platform / Single Section Mattress
Width of mattress (mm) : 665-670 mm
Thickness of mattress platform : 1.2 mm
Thickness of mattress : 125 mm
Material of mattress : Single Layered PUF with layer densities >=32 Kg/cub Mtr.
Number of sections of mattress Platform (Nos) : 2 or 4

Diameter of Castor wheel : 150 mm
Numbers of centrally lockable Castor wheel (Nos) : 2
Steering facility with additional Directional Wheel : Yes, Single Side or Both side

Range of height adjustment from the Maximum Height : 300 mm, Min Height-550 mm , Max Height-850mm

Range of angle of back rest section tilt adjustment : 80 – 90 degree
Oxygen Cylinder Holder facility : Yes
X-ray tray assembly provided : Yes
Urine Bag Holder : Yes
Range of Anti-Trendelenburg angle (+/- Degree) : 20.0 Degree
Facility for Knee break position : With the help of Gas Spring with Fail Safe Mechanism
Load Carrying Capacity - Static : 200-250Kgs
Load Carrying Capacity -Dynamic : 200-250Kgs
Warranty & Comprehensive Maintenance Contract : 5 Years (Option for CMC @ 10% of Invoice Value)

Material of bed frame: Mild Steel
Corner Bumpers: with (Four 75mm buffer at all four corners)
Side rails: Collapsible type
Height of side rails from patient surface: 350 mm
Overall Length of patient transfer trolley: 2100 mm to 2200mm
Material of side rails: Stainless Steel
Type of backrest section tilt: Continuous type
Overall width of Patient Transfer Trolley: 900mm to 950 mm
Type of Mattress: Single Section Mattress
Width of Mattress: 650 mm
Thickness of Mattress Platform: 1.6 mm or more (X-Ray Translucent HPL top of 7-9 mm)
Thickness of Mattress: 100mm
Material of Mattress: Single Layer PUF with 40 Kg/Cubic Meter Density
Number of Section of Mattress Platform: 2 Sections
Diameter of Caster Wheels: 125 mm
Number of Centrally Lockable Caster: 2 with break
Steering Facility with additional directional wheel: No
Range of Height adjustment of maximum height: 250 mmv
Range of angel of backrest system tilt adjustment of zero degree to maximum degree: 80 degree
Oxygen Cylinder holder facility: Yes
X-ray tray assembly provided: Yes
Urine Bag Holder: Yes
Range of Anti-Trendelenburg angle (+/- Degree): 15 Degree or more
Facility for Knee break position: Manual
Load Carrying Capacity (Static) of patient transfer trolley (Kgs): 300 Kg
Load Carrying Capacity (Dynamic) of patient transfer trolley (Kgs): 300 Kg
Warranty period: 3 Years
