Patient Stretcher Trolley

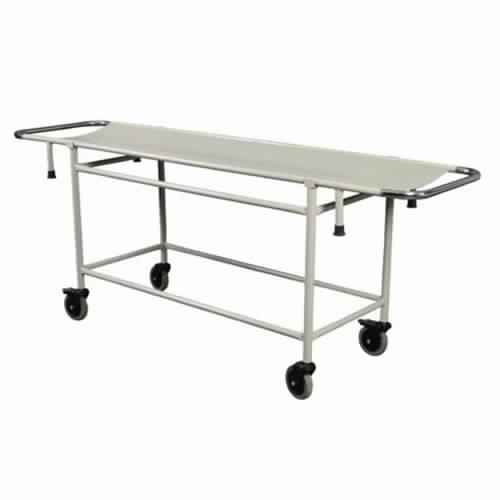

Patient Stretcher General (NST-41)

• Size : 213L x 56W x 81H cms

• Frame work of CRC tube mountedon 15cms Caster

• Removable Stretcher top withchrome plated handle.

• Pre-treated and Epoxy Powdercoated finish without mattress.

• Also available in SS pipe and sheet.Option for IV Rod

• Also available in MS Tube withCanvas Top

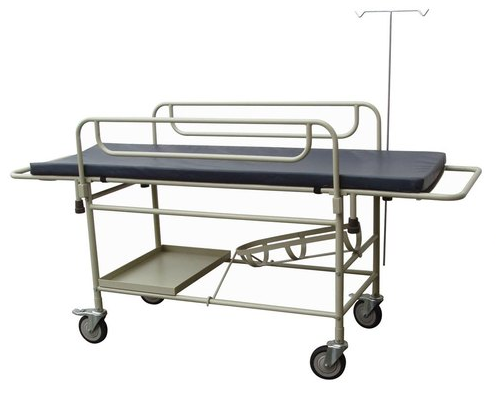

Patient Stretcher Trolley - Deluxe (NST-42)

 • Overall Length of trolley in mm with 5% tolerance: 1905

 • Overall width of trolley in mm with 5% tolerance: 560

 • Material of Stretcher Trolley: MS

 • Provision of mattress: Yes

 • Provision of Saline rod: Yes

 • Provision of storage tray: Yes

 • Number of castor wheels: 4

 • Provision of Oxygen cylinder arrangement Yes

 • Material of handle: SS

 • Warranty (Option of comprehensive warranty is available through bidding only, which if opted will supersede normal warranty in the catalogue) : 1 Year
Standards

 • Conformity to standards: CE

 • Certification number and date: CE-4282 Valid till 09.02.2023

 • Conformity to Manufacturers Quality Standards: ISO 9001 & ISO 13485
Other Performance Parameters

 • Thickness of mattress in inch: 2

 • Length of stretcher in mm with ±5% tolerance: 1830

 • Width of stretcher in mm with ±5% tolerance: 555

 • Provision of height adjustment: No

 • Material of saline rod: Stainless Steel

 • Finish of saline rod: Natural

 • Diameter of castor wheels in mm: 125

 • Number of Lockable castor wheels: 2

 • Material of Castor housing and wheels High grade non floor-standing synthetic materials with integrated thread guard

 • Wheel center having precision ball bearing to run smoothly: Yes

 • Provision of railings: Yes

 • Material of railing: Mild Steel

 • Type of railing: Tuck down type railings

 • Coating on all MS parts: Pre-treated & powder coated

 • Polish on all SS parts: finished with Matt polish

 • All corners shall be rounded off so that there shall be no sharp corners and holes should be burr free: Yes

 • Load carrying capacity in kgs: 140

 • Provision of safety belts: Yes

 • Urine Bag Holder: Yes
Other Miscellaneous Parameters

 • Copies of all certifications and reports to be
provided to buyer on demand at time of supplies: Yes

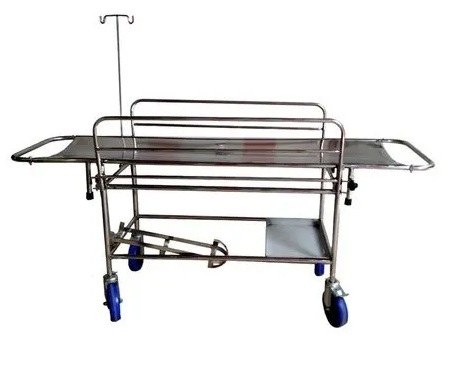

Patient Stretcher Trolley - Deluxe, SS (NST-42SS)

 • Overall Length of trolley in mm with 5% tolerance: 2070

 • Overall width of trolley in mm with 5% tolerance: 560

 • Material of Stretcher Trolley: SS

 • Provision of mattress: Yes

 • Provision of Saline rod: Yes

 • Provision of storage tray: Yes

 • Number of castor wheels: 4

 • Provision of Oxygen cylinder arrangement Yes

 • Material of handle: SS

 • Warranty : 5 Years
Standards

 • Conformity to standards: CE

 • Certification number and date: CE-2429 Dated 12.04.2022

 • Conformity to Manufacturers Quality Standards: ISO 9001 & ISO 13485
Other Performance Parameters

 • Thickness of mattress in inch: 2

 • Length of stretcher in mm with ±5% tolerance: 1830

 • Width of stretcher in mm with ±5% tolerance: 555

 • Provision of height adjustment: No

 • Material of saline rod: Stainless Steel

 • Finish of saline rod: Natural

 • Diameter of castor wheels in mm: 150

 • Number of Lockable castor wheels: 2

 • Material of Castor housing and wheels High grade non floor-standing synthetic materials with integrated thread guard

 • Wheel center having precision ball bearing to run smoothly: Yes

 • Provision of railings: Yes

 • Material of railing: Stainless Steel

 • Type of railing: Tuck down type railings

 • Coating on all MS parts: Pre-treated & powder coated

 • Polish on all SS parts: finished with Matt polish

 • All corners shall be rounded off so that there shall be no sharp corners and holes should be burr free: Yes

 • Load carrying capacity in kgs: 150

 • Provision of safety belts: Yes

 • Urine Bag Holder: Yes

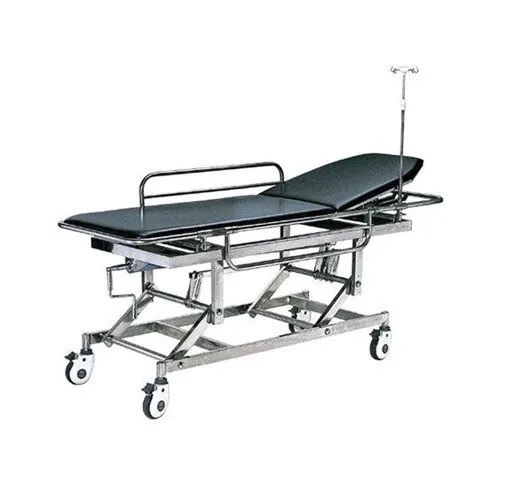

Patient Stretcher Trolley - Deluxe (NST-42 MSHA)

 • Overall Length of trolley in mm with 5% tolerance: 2030

 • Overall width of trolley in mm with 5% tolerance: 760

 • Material of Stretcher Trolley: MS

 • Provision of mattress: Yes

 • Provision of Saline rod: Yes

 • Provision of Height Adjustment: Yes

 • Provision of storage tray: Yes

 • Number of castor wheels: 4

 • Provision of Oxygen cylinder arrangement Yes

 • Material of handle: MS

 • Warranty (Option of comprehensive warranty is available through bidding only, which if opted will supersede normal warranty in the catalogue) : 3 Year
Standards

 • Conformity to standards: CE

 • Certification number and date: CE-2429 Valid till 11.04.2025

 • Conformity to Manufacturers Quality Standards: ISO 9001 & ISO 13485
Other Performance Parameters

 • Thickness of mattress in inch: 2

 • Length of stretcher in mm with ±5% tolerance: 1830

 • Width of stretcher in mm with ±5% tolerance: 555

 • Provision of height adjustment: Yes

 • Material of saline rod: MS

 • Finish of saline rod: Paintedl

 • Diameter of castor wheels in mm: 125

 • Number of Lockable castor wheels: 2

 • Material of Castor housing and wheels High grade non floor-standing synthetic materials with integrated thread guard

 • Wheel center having precision ball bearing to run smoothly: Yes

 • Provision of railings: Yes

 • Material of railing: MS

 • Type of railing: Tuck down type railings

 • Coating on all MS parts: Pre-treated & powder coated

 • Polish on all SS parts: finished with Matt polish

 • All corners shall be rounded off so that there shall be no sharp corners and holes should be burr free: Yes

 • Load carrying capacity in kgs: 135

 • Provision of safety belts: Yes

 • Urine Bag Holder: Yes
Other Miscellaneous Parameters

 • Copies of all certifications and reports to be
provided to buyer on demand at time of supplies: Yes
