N. S. TECHNOCRAFT We are manufacturing a full range of Hospital Furniture like Hospital Bed, Bedside Furniture, Patient Transfer Trolley, Labour Room Tables, OT Table and OT Lights, Medicine and Equipment Trolley etc…

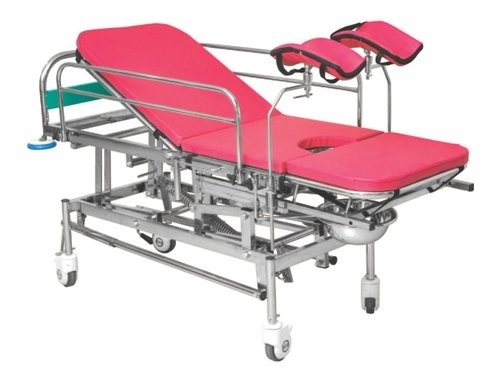

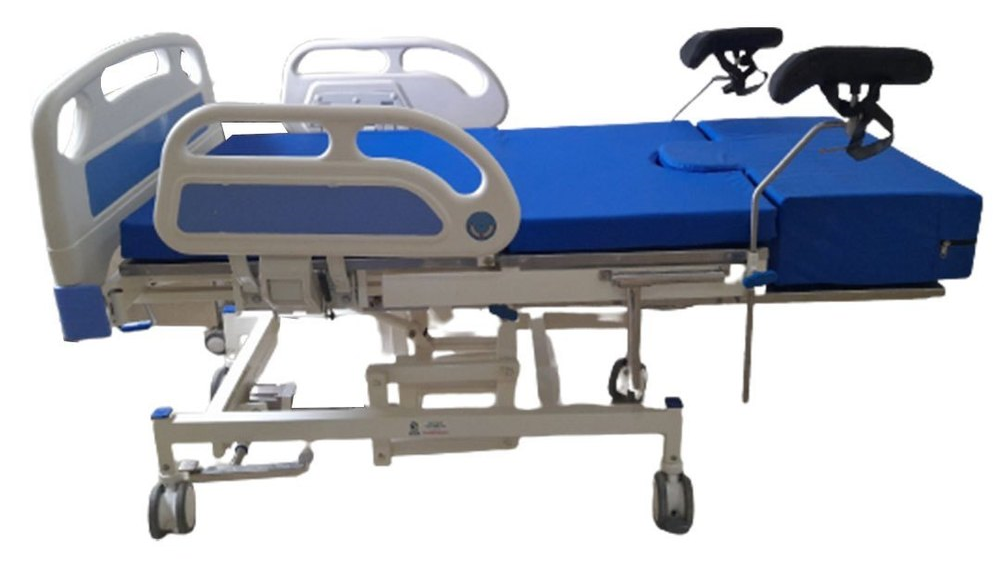

Delivery Bed (Hydraulic)
(NST-43H)
Performance Parameters• Bed movement functionality Manual control
• Type of delivery bed actuator Hydraulic Actuator (Pump Operated)
• Type of mechanism for controlling angular motion of bed Hydraulic mechanism
• Type of mechanism for controlling height of bed Hydraulic mechanism
• Type of side panel Collapsible type
• Number of Side panel 2
• Shape of Head panel D-type
• Type of Head Panel Detachable type
• Shape of Foot panel D-type
• Type of foot Panel Detachable type
• Number of hooks provided in IV Rod 4
• Power of motor in HP NA for non-motorized
• Facility of instant non powered/mechanical CPR
(Cardiopulmonary Resuscitation) release at the head
end for emergency Yes
• Urine Bag holder provided Yes
• Mattress provided with delivery bed Yes
• Mattress foam of the Bed should be with Anti-Microbial -
agent incorporated into all components that assists in -
Prohibiting growth of bacteria & fungi and easy to clean Yes
• Mattress shall be made of High resilient & bio-density Foam Yes
• "Power Supply " N/A for Handle operated
• Spares Pair of Bed Ends, detachable supplied Not supplied
• Spares Mattress Not supplied
• Facility of Resettable overcurrent breaker shall be fitted-
for protection NA for handle operated
• Electric Shock Protection level N/A for Non-Motorized
• Warranty 1 Year
• Type of powder/Paint coating done to delivery Bed
frame, top & side panel Epoxy Polyester Coating 50-60 microns (In Case of MS)
• Process used for pre chemically treatment of metallic
bed component Dip tank processes (In Case of MS)
Dimensional & Material Parameter
• Material for Head & Foot Panel : SS
• Material for Bed Top Section : MS
• Material of wheels : Polyester
• Material for IV rod : SS
• Material for Side Safety Belt : Velcro
• Material for waste receptacle bucket : SS
• Material of Delivery Bed Mattress : PU Foam
• Length of bed in mm with 2% tolerance : 1700mm to 1850 mm
• Width range of delivery bed in mm : 800mm to 900 mm
• Maximum Adjustable Back Rest Angle in Degree : 60 Degree
• Maximum Trendelenburg Angle in Degree : 30 Degree
• Maximum Reverse Trendelenburg Angle in Degree : 30 Degree
• Adjustable bed height in mm with 5% tolerance : 550-850
• Diameter of Castor Roller in mm : 125 mm
• Clearance between Bed Base frame and Floor surface in mm : 150 mm
• Maximum thickness of Mattress with tolerance +/-2 mm : 65 mm
• Approx. foam Density in kg/m3 : 32 Density
• Therapeutic Weight limit for mattress in kg : 150 Kg
• Approximate Weight of the ICU Bed : 45 Kgs
Certifications for Product : ICMED-13485 plus, European CE
ISO 9001:2015
Warrantee : 3 Years for Manufacturing defects only
Delivery Bed (Mechanical)
(NST-43M)
Performance Parameters• Manual Control Bed movement functionality
• Mechanical (Handle Operated) Delivery Bed Actuators
• Super Smooth Crank Screw Mechanism for functioning or controlling angular motion of the bed.
• Super Smooth Crank Screw Mechanism for functioning or controlling Height of the bed.
• Three Section Top with Large perineal cut in C shape must be provided in seat section.
• Safety Belt provided.
• Detachable type SS side panels in safety side railings.
• D-Type shape and Detachable SS Head and Foot Panels
• Provision to convert bed in to table
• Good grip provided to head/foot or side panel
• Hand grip /push grip handles on both side
• Adjustable leg rest provided
• Lithotomy position & padded knee crutches provided
• Slots for IV rod at head section provided
• 2 hooks IV Rod
• Availability of Noiseless, non-rusting swivel castor wheel/ roller with for easy Mobility & Steering
• Braking and locking mechanism provided in two castor roller
• Corner buffer provided in all four corner to protect patient from collision shock
• 150 Kgs Safe working load capacity of Delivery bed
• 3 Section Mattress made of High resilient & bio-density PU foam with Anti-Microbial agent incorporated into all components that assists in Prohibiting growth of bacteria & fungi and easy to clean.
• Base frame and support frame fabricated using metallic square / rectangular section of adequate cross section and thickness to provide high structural strength and stability
• Delivery Bed made up of high quality metal, pretreated with materials providing good finish, scratch resistant, bacteriostatic coating
• Provision of easily cleaning /sterilize (Especially Blood Stains)/maintenance to delivery Bed
• Product instruction manual shall be supplied
• Epoxy Polyester Coating 50-60 microns with Dip Tank Process of all MS Parts.
• Demonstration of equipment and training to be provided after completing supplies
Dimensional & Material Parameter
• Material for Head & Foot Panel : SS
• Material for Bed Top Section : MS
• Material of wheels : Polyester
• Material for IV rod : SS
• Material for Side Safety Belt : Velcro
• Material for waste receptacle bucket : SS
• Material of Delivery Bed Mattress : PU Foam
• Length of bed in mm with 2% tolerance : 1700mm to 1850 mm
• Width range of delivery bed in mm : 800mm to 900 mm
• Maximum Adjustable Back Rest Angle in Degree : 60 Degree
• Maximum Trendelenburg Angle in Degree : 30 Degree
• Maximum Reverse Trendelenburg Angle in Degree : 30 Degree
• Adjustable bed height in mm with 5% tolerance : 550-850
• Diameter of Castor Roller in mm : 125 mm
• Clearance between Bed Base frame and Floor surface in mm : 150 mm
• Maximum thickness of Mattress with tolerance +/-2 mm : 65 mm
• Approx. foam Density in kg/m3 : 32 Density
• Therapeutic Weight limit for mattress in kg : 150 Kg
• Approximate Weight of the ICU Bed : 45 Kgs
Certifications for Product : ICMED-13485 plus, European CE
ISO 9001:2015
Warrantee : 3 Years for Manufacturing defects only
Labour Table Telescopic
• Three Sectional Stainless Steel top, back - rest adjustable by Ratchet.• Middle section with “U” cut, leg section can slide under main frame
• Trendlenburg position achieved with Pneumatic pump system
• Provided with head & side safety rails, S.S. Hand Grips
• Three sectional mattress, a pair of Lithotomy Roads with straps/cruches
• Sliding S.S. Douche Tray
• Four Rubber stumps fitted on legs
• Size : 187L x 96W x 80H cms

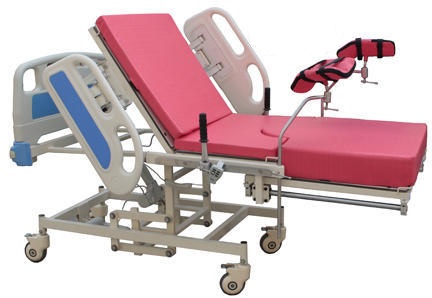

Delivery Bed – Electric (NST-43 E)
Performance Parameters• Type of delivery bed actuator: Electro-Mechanical (Motorized)
• Type of mechanism for controlling angular motion of bed- Hydraulic mechanism
• Type of mechanism for functioning or controlling height of bed: Hydraulic mechanism
• Type of side panel: Collapsible type / Swing Up Down type
• Number of Side panel: 2 / 4
• Shape of Head panel: D-Type / C-Type
• Type of Head Panel: Detachable type
• Shape of Foot panel: D-Type / C-Type
• Type of Foot Panel: Detachable type
• Number of hooks provided in IV Rod: 2
• Power of motor in HP: 0.5 hp
• Facility of instant non powered/mechanical CPR (Cardiopulmonary Resuscitation) release at the head end for emergency: Yes
• Urine Bag holder provided: Yes
• Mattress provided with delivery bed: Yes
• Mattress foam of the Bed should be with Anti-Microbial agent incorporated into all components that assists in Prohibiting growth of bacteria & fungi and easy to clean: Yes
• Mattress shall be made of High resilient & bio-density foam: Yes
• Power Supply: Single phase 220-240 Volt, 50 Hz (AC Supply)
• Spares Pair of Bed Ends, detachable supplied: Not Supplied
• Spares Mattress: Not Supplied
• Facility of Resettable overcurrent breaker shall be fitted for protection: Yes
• Electric Shock Protection level : Class-B/Class -1
• Warranty period: 3 Years
• Type of Powder Coating in Delivery Bed Frame, Top and Side Panel: Epoxy Powder Coating
• Process used for pre chemically treatment of metallic bed component: Dip tank Process
Material Parameters
• Material for the frame of bed: MS
• Material for Head & Foot Panel/Board: ABS Plastic
• Material for Bed top Section: Acrylic Sheet
• Material of wheels: Polyester
• Material for IV Rod SS
• Material for waste receptacle bucket: SS
• Material for delivery Bed Mattress: PU Foam
Dimensional Parameters
• Length range of delivery bed in mm: 1851-2000
Delivery Table (3 Section Top)
Overall Size : 180L x 60W x 46H cms• Framework made of Stainless Steel
• Back rest section adjustable on Ratchet / Lever
• Legs fitted with PVC Stumps
• 5 cms foam cushioned top covered with rexine
• Adjustable lithotomy poles with straps
• Finish : Epoxy Powder Coated
Delivery Bed - Mechanical
(NST-43 Mechanical)
• MS Tubular frame work mounted on swiveling castors 125mm dia• MS / CRAC Sheet mattress platform
• Hydraulic Mechanism - Hydraulic Actuator (Pump Operated) height adjustable by foot paddle from side
• Backrest section adjustable by Super Smooth Crank Screw Mechanism
• Leg end section can slide under the main section
• Detachable MS tube D-type safety head, foot and side panel
• Complete with stainless steel bowl and IV rod, two adjustable knee crutches and PU Foam mattress
• Pre- treated and epoxy powder coated finish
• Size: 1900 L x 810 W x 550-850mm H
