N. S. TECHNOCRAFT We are manufacturing a full range of Hospital Furniture like Hospital Bed, Bedside Furniture, Patient Transfer Trolley, Labour Room Tables, OT Table and OT Lights, Medicine and Equipment Trolley etc.

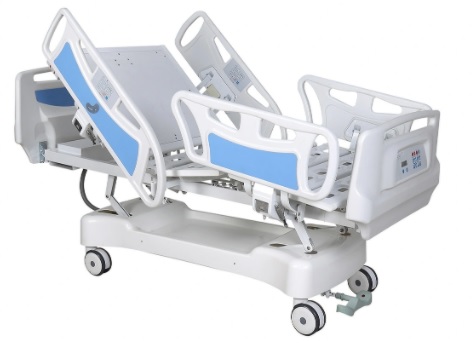

ICU Electric Bed (NST-03)
Performance ParameterPurpose: ICU Bed are required to be used in Intensive Care Unit for comfort of Patient & facilitate comfortable transfer to & from Emergency/ OT/ Ward etc. & also to carry out point of care process including Radio-logical procedure at bed side.
Type of ICU Bed Actuator: Electro-Mechanical (Motorized)
Type of mechanism for functioning or controlling angular motion of bed part: Hydraulic mechanism (Motorized)
Type of mechanism for functioning or controlling Height of bed: Counter weight mechanism
Bed top Perforated : Yes
Bed should have radio translucent top (X-Ray translucent): Yes
Type of side panel: Swing Up Swing Down
Number of Side panel: 04
Shape of Head & Foot panel /Board: D-type
Type of Head & foot Panel: Detachable type
Number of hooks provided in IV rod: 2
Availability of rectangular telescopic tube box housing for tension spring: Yes
Degree Angle & Height indicator shall be provided at both foot & head side: Yes
X-Ray film holder used from: One side
Power of motor in HP: 0.5 hp
Availability of patient constraint belt provided on both side of bed: No
Number of caster to which braking system provided: 2
Safe working load capacity of ICU bed in kg: 150
Mattress provided with ICU bed: Yes
ICU mattress must X-ray translucent: Yes
Mattress shall be made of High resilient & bio-density foam: Yes
Mattress should be translucent to allow radiography using portable X-ray machines: Yes
Mattress should be made in cube cut design & independent cubes promote air flow to reduce moisture: Yes
Material for ICU Bed Mattress: PU Foam
Therapeutic Weight limit for mattress in kg: 150
Power Supply (as appropriate fitted with Indian plug): Single phase 230 Volt, 50 Hz (AC Supply )
Facility of Resettable overcurrent breaker shall be fitted for protection: Yes
Warranty: 3 Years
Standard Parameter
Conformity to standard for safety & electromagnetic compatibility: IEC-60601-1-2:2001 Standard or IS-13450
Dimensional & Material Parameter
Material for the frame of bed: MS
Material for side railing/ Side Safety guard: ABS Plastic
Material for Head & Foot Panel/Board: ABS Plastic
Material for Bed Top Section: ABS Plastic
Material of wheels: Polyester
Material for IV rod with chromium plated: SS
Maximum Adjustable Back Rest Angle in Degree: 0-70
Maximum Adjustable Knee Rest Angle in Degree: 0-40
Maximum Trendelenburg Angle in Degree with tolerance ±2 degree: 15
Maximum Reverse Trendelenburg Angle in Degree with tolerance ± 2 degree: 15
Mean coil diameter of tension spring used in counter weight mechanism in mm: 40
Spring coil diameter used in counter weight mechanism in mm: 6
Clearance between Bed Base frame and Floor surface in mm: 150
Length of bed in mm with 2% tolerance: 2100-2200
Width of bed in mm with 2% tolerance: 1000-1050
Additional Parameters
Spares Accessories: Not Supplied
Reports
Certifications for Product: European CE
Electric Shock Protection Level-Class-B/class-1: Yes
PRODUCT ENQUIRER

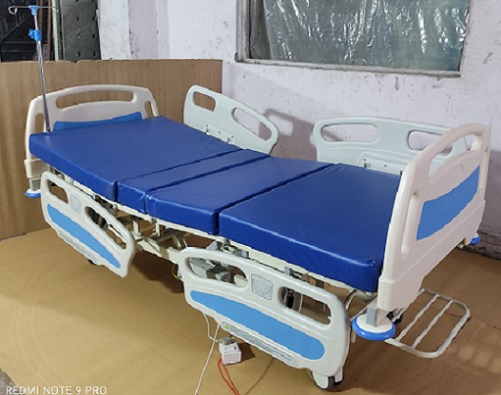

ICU Electric Bed (NST-03.01)
Performance Parameter :• Purpose: ICU Bed are required to be used in Intensive Care Unit for comfort of Patient & facilitate comfortable transfer to & from Emergency/ OT/ Ward etc. & also to carry out point of care process including Radio-logical procedure at bed side
• Type of ICU Bed Actuator: Electro-Mechanical (Motorized)
• Type of mechanism for functioning or controlling angular motion of bed part: Electro-Mechanical (Motorized)
• Type of mechanism for functioning or controlling Height of bed: Electro-Mechanical (Motorized) • Bed top perforated: Yes
• Bed should have radio translucent top (X-Ray translucent): No
• Type of side panel: Swing Up Down type
• Number of Side panel: 4
• Shape of Head & Foot panel /Board: B-type
• Type of Head & foot Panel: Detachable type
• Number of hooks provided in IV rod: 2
• Availability of rectangular telescopic tube box housing for tension spring: Yes
• Degree Angle & Height indicator shall be provided at both foot & head side: Yes
• X-Ray film holder used from: One side
• Power of motor in HP (for non-motorized put NA): 0.5 hp / NA
• Availability of patient constraint belt provided on both side of bed: No
• Number of caster to which braking system provided: 2
• Safe working load capacity of ICU bed in kg: 200
• Mattress provided with ICU bed: Yes
• ICU mattress must X-ray translucent: Yes
• Mattress shall be made of High resilient & bio-density foam: Yes
• Mattress should be translucent to allow radiography using portable X-ray machines: Yes
• Mattress should be made in cube cut design & independent cubes promote air flow to reduce moisture: Yes
• Material for ICU Bed Mattress: PU Foam
• Therapeutic Weight limit for mattress in kg: 150
• Power Supply (as appropriate fitted with Indian plug): Single phase 230 Volt, 50 Hz (AC Supply)
• Facility of Resettable overcurrent breaker shall be fitted for protection: NA for Handle Operated / Yes for Electric Operated
• Warranty: 2 Years + Option of comprehensive warranty
Standard Parameter
• Conformity to standard for safety & electromagnetic compatibility: IEC-60601-1-2:2001 Standard or IS-13450
Dimensional & Material Parameter
• Material for the frame of bed: MS
• Material for side railing/ Side Safety guard: ABS Plastic
• Material for Head & Foot Panel/Board: ABS Plastic
• Material for Bed Top Section: ABS Plastic
• Material of wheels: Polyester
• Maximum Adjustable Back Rest Angle in Degree: 0-70
• Maximum Adjustable Knee Rest Angle in Degree: 0-40
• Maximum Trendelenburg Angle in Degree with tolerance ±2 degree: 10
• Maximum Reverse Trendelenburg Angle in Degree with tolerance ± 2 degree: 10
• Mean coil diameter of tension spring used in counter weight mechanism in mm: N/A
• Spring coil diameter used in counter weight mechanism in mm: N/A
• Clearance between Bed Base frame and Floor surface in mm: 120
• Length of bed in mm with 2% tolerance: 2100-2200
• Width of bed in mm with 2% tolerance: 950-1000
Additional Parameters
• Spares ICU Bed Mainframe supplied: Not supplied
• Spares Pair of Bed Ends, detachable supplied: Not supplied
• Spares Collapsible side rails supplied: Not supplied
• Spares IV Rods supplied: 1
• Spares Mattress similar to one supplied with ICU bed: not supplied
Reports
• Electric Shock Protection Level-Class-B/class-1: Yes
PRODUCT ENQUIRER

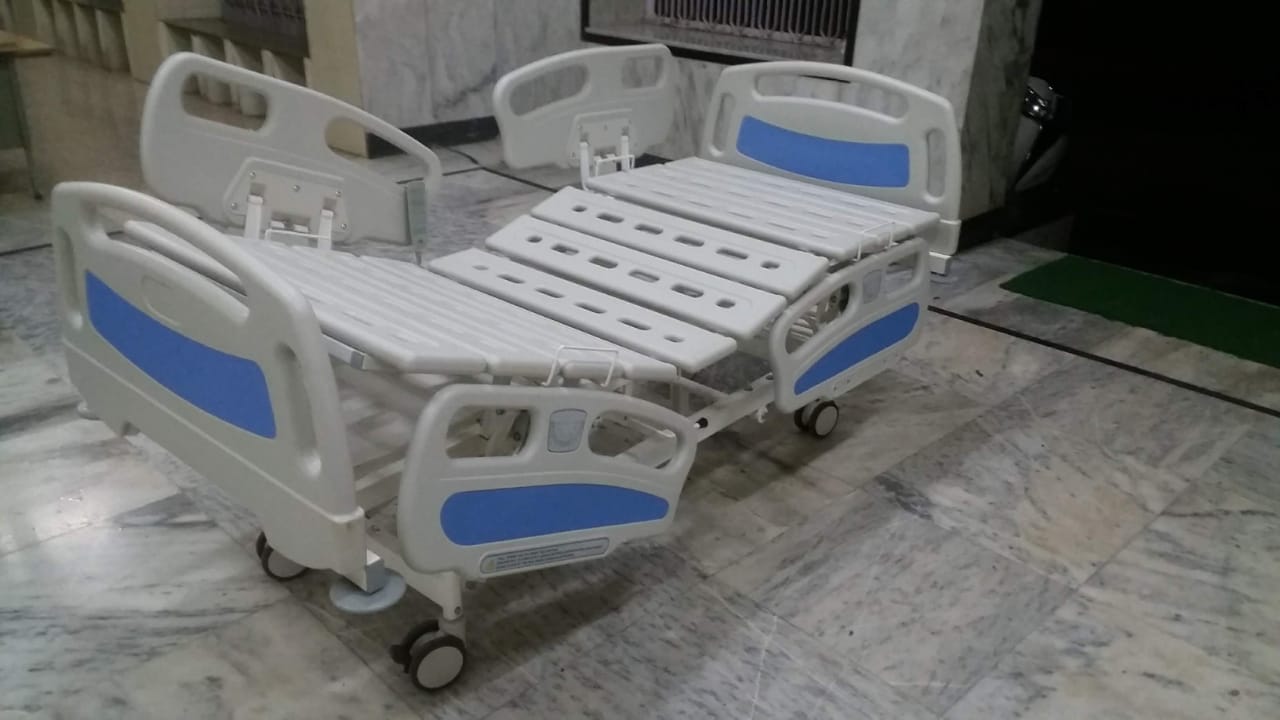

ICU Electric Bed (NST-03.02)
Performance Parameter :• Purpose: ICU Bed are required to be used in Intensive Care Unit for comfort of Patient & facilitate comfortable transfer to & from Emergency/ OT/ Ward etc. & also to carry out point of care process including Radio-logical procedure at bed side
• Type of ICU Bed Actuator: Electro-Mechanical (Motorized)
• Type of mechanism for functioning or controlling angular motion of bed part: Electro-Mechanical (Motorized)
• Type of mechanism for functioning or controlling Height of bed: Electro-Mechanical (Motorized) Bed top perforated: Yes
• Bed should have radio translucent top (X-Ray translucent): No
• Type of side panel: Swing Up Down type
• Number of Side panel: 4
• Shape of Head & Foot panel /Board: C-type
• Type of Head & foot Panel: Detachable type
• Number of hooks provided in IV rod: 4
• Availability of rectangular telescopic tube box housing for tension spring: NA
• Degree Angle & Height indicator shall be provided at both foot & head side: Yes
• X-Ray film holder used from: One side
• Power of motor in HP (for non-motorized put NA): 0.5 hp / NA
• Availability of patient constraint belt provided on both side of bed: No
• Number of caster to which braking system provided: 4
• Safe working load capacity of ICU bed in kg: 250
• Mattress provided with ICU bed: Yes
• ICU mattress must X-ray translucent: Yes
• Mattress shall be made of High resilient & bio-density foam: Yes
• Mattress should be translucent to allow radiography using portable X-ray machines: Yes
• Mattress should be made in cube cut design & independent cubes promote air flow to reduce moisture: Yes
• Material for ICU Bed Mattress: PU Foam
• Therapeutic Weight limit for mattress in kg: 175
• Power Supply (as appropriate fitted with Indian plug): Single phase 230 Volt, 50 Hz (AC Supply)
• Facility of Resettable overcurrent breaker shall be fitted for protection: Yes
• Warranty: 5 Years + Option of comprehensive warranty
Standard Parameter
• Conformity to standard for safety & electromagnetic compatibility: IEC-60601-1-2:2001 Standard or IS-13450
Dimensional & Material Parameter
• Material for the frame of bed: MS
• Material for side railing/ Side Safety guard: ABS Plastic
• Material for Head & Foot Panel/Board: ABS Plastic
• Material for Bed Top Section: MS
• Material of wheels: Polyester
• Maximum Adjustable Back Rest Angle in Degree: 0-70
• Maximum Adjustable Knee Rest Angle in Degree: 0-40
• Maximum Trendelenburg Angle in Degree with tolerance ±2 degree: 20
• Maximum Reverse Trendelenburg Angle in Degree with tolerance ± 2 degree: 20
• Mean coil diameter of tension spring used in counter weight mechanism in mm: N/A
• Spring coil diameter used in counter weight mechanism in mm: N/A
• Clearance between Bed Base frame and Floor surface in mm: 150
• Length of bed in mm with 2% tolerance: 2100-2200
• Width of bed in mm with 2% tolerance: 1000-1050
Additional Parameters
• Spares ICU Bed Mainframe supplied: Not supplied
• Spares Pair of Bed Ends, detachable supplied: Not supplied
• Spares Collapsible side rails supplied: Not supplied
• Spares IV Rods supplied: 1
• Spares Mattress similar to one supplied with ICU bed: not supplied
Reports
• Electric Shock Protection Level-Class-B/class-1: Yes
PRODUCT ENQUIRER

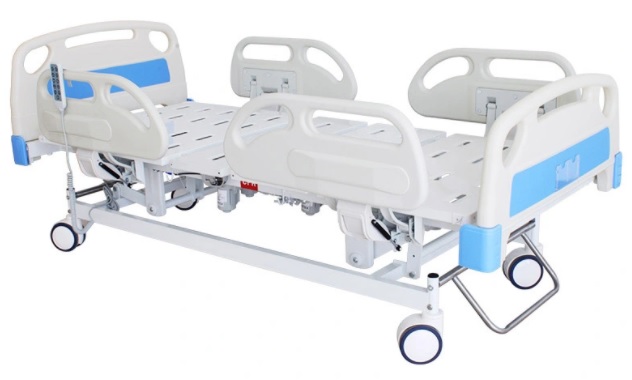

ICU Electric Bed (NST-03.03)
• Frame Work : Rectangular MS/CRC Tube of dia 30x60 mm x 1.6 gauge thick and dia• Sheet/Top : 4 Section Top made by perforated MS/CRCA Sheet of 18G CRCA Sheet
• Positions : Back Rest, Knee Rest , TB / RTB & Hi-Low position obtained by Electric Actuator operated by Hand Remote System
• Panel : ABS molded head and foot bows
• Side Railing : 4 PC ABS safety side railings with degree indicator
• I.V. Rod : 4 Locations position
• Stand on : Bed mounted on 125mm Dia Caster
• Size : L = 210 cms, W= 95 cms, H= 50-90 cms (+/- 5 cms) or as per buyers requirements
• Finish : Pre-Treated and Epoxy Powder Coated
• Attachments : 4 Fold Mattress and one Telescopic 4 hook SS I.V. Rod
• Accessories : CPR Position by Remote for Backrest, Attached Urine Bag Holder, Molded Chart Holder .
PRODUCT ENQUIRER

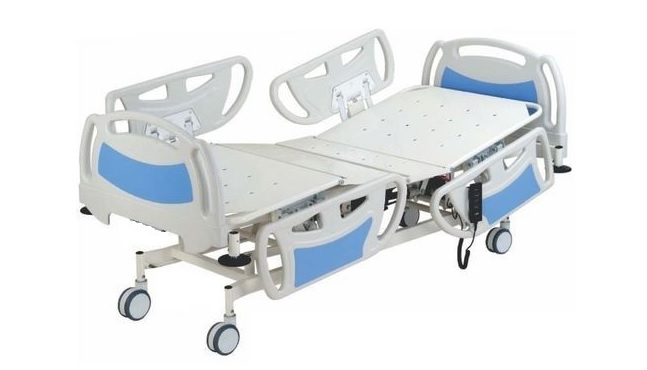

ICU Electric Bed (NST-03.04)
• Frame Work : Rectangular MS Tube of 30x60 mm dia x 1.6mm thickness pipe• Sheet/Top : 4 Section Top made by 18 Gauge perforated CRCA Sheet
• Positions : Back Rest, Knee Rest , TB / RTB & Hi-Low position obtained by Electric Actuator operated by Hand Remote System and Electronics Head side Railing and Foot Panel Nurse Control
• Panel : ABS molded head and foot bows
• Side Railing : 4 Pcs ABS safety side railings with Electronics Control Panel in Both Head Side Railing
• I.V. Rod : 4 Locations position
• Stand on : Bed mounted on 125mm Dia Caster (with Central Breaking System)
• Size : L = 210 cms, W= 95 cms, H= 50-90 cms (+/- 5 cms) or as per buyers requirements
• Finish : Pre-Treated and Epoxy Powder Coated
• Attachments : Mechanical CPR Position by Hand Clutch for Backrest, Urine Bag Holder, ABS Base Cover
• Accessories : , 4 Fold Mattress, Telescopic 4 hook SS I.V. Rod, Molded Chart Holder .
PRODUCT ENQUIRER

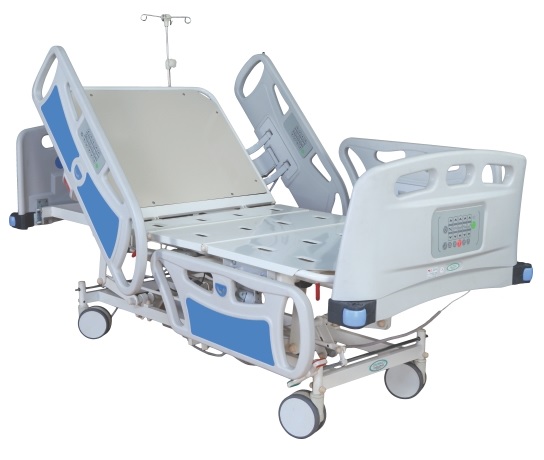

ICU Electric Bed - Premium (NST-03.05)
Performance Parameter :• Purpose: ICU Bed are required to be used in Intensive Care Unit for comfort of Patient & facilitate comfortable transfer to & from Emergency/ OT/ Ward etc. & also to carry out point of care process including Radio-logical procedure at bed side
• Type of ICU Bed Actuator: Electro-Mechanical (Motorized)
• Type of mechanism for functioning or controlling angular motion of bed part: Hydraulic Mechanism (Motorized)
• Type of mechanism for functioning or controlling Height of bed: Hydraulic Mechanism • Bed top perforated: Yes
• Bed should have radio translucent top (X-Ray translucent): Yes
• Type of side panel: Swing Up Down type
• Number of Side panel: 4
• Shape of Head & Foot panel /Board: B-type/ C-type
• Type of Head & foot Panel: Detachable type
• Number of hooks provided in IV rod: 2
• Availability of rectangular telescopic tube box housing for tension spring: NA for Hydraulic Mechanism type of Bed
• Degree Angle & Height indicator shall be provided at both foot & head side: Yes
• X-Ray film holder used from: One side
• Power of motor in HP (for non-motorized put NA): 0.5 hp / NA
• Availability of patient constraint belt provided on both side of bed: No
• Number of caster to which braking system provided: 4
• Safe working load capacity of ICU bed in kg: 150
• Mattress provided with ICU bed: Yes
• ICU mattress must X-ray translucent: Yes
• Mattress shall be made of High resilient & bio-density foam: Yes
• Mattress should be translucent to allow radiography using portable X-ray machines: Yes
• Mattress should be made in cube cut design & independent cubes promote air flow to reduce moisture: Yes
• Material for ICU Bed Mattress: PU Foam
• Therapeutic Weight limit for mattress in kg: 150
• Power Supply (as appropriate fitted with Indian plug): Single phase 230 Volt, 50 Hz (AC Supply)
• Facility of Resettable overcurrent breaker shall be fitted for protection: Yes
• Warranty: 3 Years + Option of comprehensive warranty
Standard Parameter
• Conformity to standard for safety & electromagnetic compatibility: IEC-60601-1-2:2001 Standard or IS-13450
Dimensional & Material Parameter
• Material for the frame of bed: MS
• Material for side railing/ Side Safety guard: ABS Plastic
• Material for Head & Foot Panel/Board: ABS Plastic
• Material for Bed Top Section: MS
• Material of wheels: Polyester
• Maximum Adjustable Back Rest Angle in Degree: 0-70
• Maximum Adjustable Knee Rest Angle in Degree: 0-40
• Maximum Trendelenburg Angle in Degree with tolerance ±2 degree: 15
• Maximum Reverse Trendelenburg Angle in Degree with tolerance ± 2 degree: 15
• Mean coil diameter of tension spring used in counter weight mechanism in mm: N/A
• Spring coil diameter used in counter weight mechanism in mm: N/A
• Clearance between Bed Base frame and Floor surface in mm: 120
• Length of bed in mm with 2% tolerance: 2100-2200
• Width of bed in mm with 2% tolerance: 950-1000
Additional Parameters
• Spares ICU Bed Mainframe supplied: Not supplied
• Spares Pair of Bed Ends, detachable supplied: Not supplied
• Spares Collapsible side rails supplied: Not supplied
• Spares IV Rods supplied: 1
• Spares Mattress similar to one supplied with ICU bed: not supplied
Reports
• Electric Shock Protection Level-Class-B/class-1: Yes
PRODUCT ENQUIRER
ICU Electric Bed (NST-04.01)
• Frame Work : Rectangular MS/CRC Tube• Sheet/Top : 4 Section Top made by perforated MS/CRCA Sheet
• Positions : Back Rest, Knee Rest , TB / RTB & Hi-Low position obtained by Electric Actuator operated by Hand Remote System
• Panel : ABS molded head and foot bows
• Side Railing : Collapsible safety side railings
• I.V. Rod : 4 Locations position
• Stand on : Bed mounted on 125mm Dia Caster (2 with break)
• Size : L = 210 cms, W= 95 cms, H= 50-90 cms (+/- 5 cms) or as per buyers requirements
• Finish : Pre-Treated and Epoxy Powder Coated
• Attachments : 4 Fold Mattress and one Telescopic 4 hook SS I.V. Rod.
• Accessories : CPR Position by Remote for Backrest, Attached Urine Bag Holder, Molded Chart Holder .
