N. S. TECHNOCRAFT We are manufacturing a full range of Hospital Furniture like Hospital Bed, Bedside Furniture, Patient Transfer Trolley, Labour Room Tables, OT Table and OT Lights, Medicine and Equipment Trolley etc.
ICU Mechanical Bed (NST-01)
Purpose: ICU Bed are required to be used in Intensive Care Unit for comfort of Patient & facilitate comfortable transfer to & from Emergency/ OT/ Ward etc. & also to carry out point of care process including Radio-logical procedure at bed side .ICU Bed Actuator type : ------ Mechanical (Handle Operated)
Function mechanism type for CAM of bed : ------ Super Smooth Crank Screw Mechanism
Functioning mechanism type for Height Control : ------ Super Smooth Crank Screw Mechanism
Bed top type : ------ Perforated
X-Ray translucent facility : ------ Yes/No
Side panel type : ------ Collapsible
Number of Side panel : ------ 2
Head & Foot panel /Board shape : ------ B-type / C-type / D-type
Head & foot Panel type : ------ Detachable
Number of hooks provided in IV rod : ------ 2
Rectangular telescopic tube box housing (for T/Spring) : ------ Yes/No
Degree Angle & Height indicator : ------ No
X-Ray film holder used from : ------ One Side
Power of motor in HP : ------ NA
Availability of patient constraint belt provided both side : ------ No
Number of caster to which braking system provided : ------ 2
Safe working load capacity of ICU bed in kg : ------ 150
Mattress provided with ICU bed : ------ Yes
ICU mattress must X-ray translucent : ------ Yes
Mattress made of High resilient & bio-density foam : ------ Yes
Mattress type : ------ Translucent to allow radiography
Mattress design : ------ cube cut design promote air flow
ICU Bed Mattress material : ------ PU Foam
Therapeutic Weight limit for mattress in kg : ------ 150-175 Kg
Power Supply : ------ N/A for mechanical operated
Facility of Resettable overcurrent breaker : ------ N/A for handle operated
Warranty : ------ 3 Years
Standard Parameter Conformity to standard for safety &
electromagnetic compatibility : ------ IEC60601-1-2:2001 or IS13450
Dimensional & Material Parameter
Material for the frame of bed : ------ MS
Material for side railing/ Side Safety guard : ------ SS
Material for Head & Foot Panel/Board : ------ ABS Plastic
Material for Bed Top Section : ------ MS
Material of wheels : ------ Polyester
Material for IV rod with chromium plated: ------ SS
Maximum Adjustable Back Rest Angle in Degree : ------ 0-70 degree
Maximum Adjustable Knee Rest Angle in Degree : ------ 0-40 degree
Maximum Trendelenburg Angle in Degree (±2d) : ------ 15 degree
Maximum Reverse Trendelenburg Angle in Degree (± 2d) : ------ 15 degree
Mean coil diameter of tension spring for CWM : ------ 40, N/A for Super Smooth Crank Screw Mechanism
Spring coil diameter used in counter weight mechanism : ------ 6, N/A for Super Smooth Crank Screw Mechanism
Clearance between Bed Base frame and Floor surface : ------ 150 mm
Length of bed in mm with 2% tolerance : ------ 2100-2200 mm
Width of bed in mm with 2% tolerance : ------ 1000-1050 mm
Additional Parameters
Spares Accessories of ICU Bed like Mainframe, Bed Ends, detachable Collapsible side rails supplied, IV Rods, Mattress : ------ No, Supplied on additional charges only
Electric Shock Protection level : ------ NA for handle operated
PRODUCT ENQUIRER

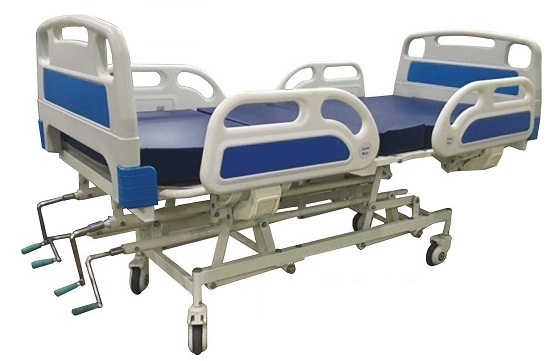

ICU Mechanical Bed (NST-01B)
Purpose: ICU Bed are required to be used in Intensive Care Unit for comfort of Patient & facilitate comfortable transfer to & from Emergency/ OT/ Ward etc. & also to carry out point of care process including Radio-logical procedure at bed side.ICU Bed Actuator type :Mechanical (Handle Operated)
Function mechanism type for CAM of bed :Super Smooth Crank Screw Mechanism
Functioning mechanism type for Height Control :Super Smooth Crank Screw Mechanism
Bed top type :Perforated
X-Ray translucent facility :Radio translucent top
Side panel type :Swing Up Swing Down
Number of Side panel :4
Head & Foot panel /Board shape :D-type
Head & foot Panel type :Detachable
Number of hooks provided in IV rod : 2 OR 4
Rectangular telescopic tube box housing (for T/Spring) :No
Degree Angle & Height indicator :Yes
X-Ray film holder used from :One Side
Power of motor in HP :Not Required
Availability of patient constraint belt provided both side :No
Number of caster to which braking system provided :2
Safe working load capacity of ICU bed in kg :200
Mattress provided with ICU bed :Yes
ICU mattress must X-ray translucent :Yes
Mattress made of High resilient & bio-density foam :Yes
Mattress type :Translucent to allow radiography
Mattress design :Cube cut design promote air flow
ICU Bed Mattress material :PU Foam
Therapeutic Weight limit for mattress in kg :150 Kg
Power Supply :N/A for mechanical operated
Facility of Resettable overcurrent breaker :N/A for handle operated
Warranty :2 Years
Standard Parameter Conformity to standard for safety
& electromagnetic compatibility :IEC60601-1-2:2001 or IS13450
Dimensional & Material Parameter
Material for the frame of bed :MS
Material for side railing/ Side Safety guard :ABS Plastic
Material for Head & Foot Panel/Board :ABS Plastic
Material for Bed Top Section :ABS Plastic
Material of wheels :Polyester
Maximum Adjustable Back Rest Angle in Degree :0-70 degree
Maximum Adjustable Knee Rest Angle in Degree :0-40 degree
Maximum Trendelenburg Angle in Degree (±2) :10 degree
Maximum Reverse Trendelenburg Angle in Degree (± 2) :10 degree
Mean coil diameter of tension spring for CWM :No
Spring coil diameter used in counter weight mechanism :No
Clearance between Bed Base frame and Floor surface :150 mm
Length of bed in mm with 2% tolerance :2000-2100 mm
Width of bed in mm with 2% tolerance :1000-1050 mm
Additional Parameters Spares Accessories of ICU Bed like Mainframe, Bed Ends, detachable Collapsible side rails supplied, IV Rods, Mattress :No, Supplied on additional charges only
Electric Shock Protection level :NA for handle operated
PRODUCT ENQUIRER
ICU Mechanical Bed with SS Panel & SS Up & Down Railing (NST-02)
• Frame Work : Rectangular MS Tube• Sheet/Top : 4 Section Top made by perforated CRCA Sheet
• Positions : Back Rest, Knee Rest , TB/RTB & Hi-Lo position by Screw System
• Panel : Laminated Wooden Panel fitted with SS Pipe in head and foot bows
• Side Railing : SS Pipe safety side railings (Collapsible/Up & Down)
• I.V. Rod : 4 Locations position
• Stand on : Bed mounted on 125mm Dia Caster with break
• Size : L = 210 cms, W= 90 cms, H= 50-70 cms
• Finish : Pre-Treated and Epoxy Powder Coated (Ivory or required color)
• Attachments : 4 Fold Mattress and one Telescopic I.V. Rod in SS Rod with MS Pipe Fittings.
