Hospital OPD & Office Furniture

TREATMENT COUCH (EXAMINATION TABLE) Model : NST-28

General Features Warranty: 2 year Maximum Load Weight: 190 kilogram Type of Treatment Couch Section: 2 Measurements & Technical Data Control Box Output Voltage: NA Maximum Height in mm: 400-450 NO. OF Actuator: NA Total Length in mm: 1825-1850 Table Top Width in mm: 475-500 Leg Tilt Angles in degree: NA Maximum Head Tilt Angle (From Horizontal) in degree: 40-45 Head Section Length in mm: 400-425 Max. Load (Push): 8000 Newton Actuator Input Voltage, DC in Volts: NA Control Box Rated Input Voltage: NA Duty cycle: NA Leg Section Length in mm: 700-725 Max. Current in Amp: NA Breathing Hole,Plug: 0 Foot Section Adjustment: Manual Wheel Base: No Wheel Mid Section Length in mm: 400-425 Minimum Height (Hint- If not adjustable write NA) in mm: NA Height Elevation: NA Minimum Head Tilt Angle (From Horizontal) in degree: 70 Degree Frequency in Hz: NA Head Tilt Angles in degree: NA Height Adjustable: No Environmental Conditions Relative Humidity, %: 30 Mattress Specification Mattress fitting Type: Fixed Couch Construction Frame Type: Mild Steel Armrest: No

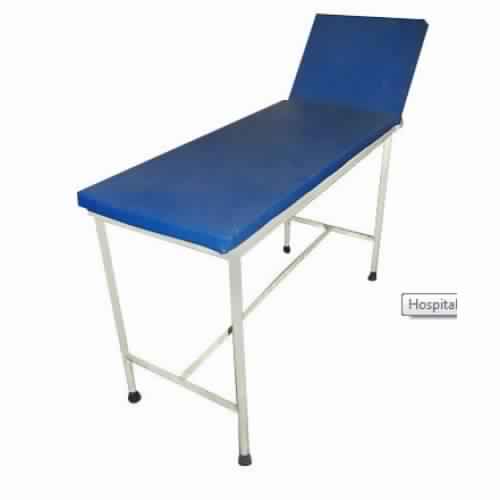

HOSPITAL EXAMINATION TABLE U CUT

• Overall Size: 72”L x 24”W x 32”H

• MS Tubular frame work mounted on PVC Stumps

• Adjustable Back Rest by hand lever, 2 section top

• Epoxy Powder coated finish

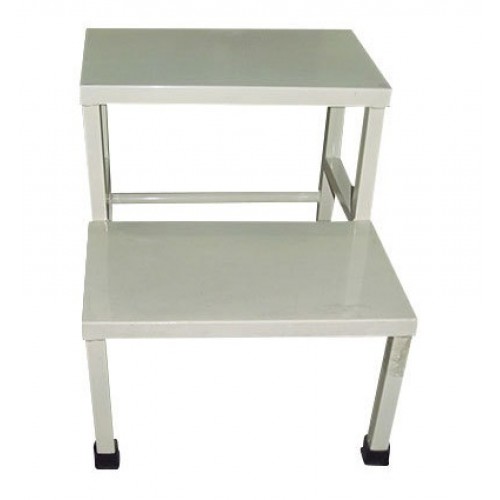

Foot Step - Double (NST-24B)

• Type of Foot Step: Double Foot Step

• Height of Foot Step: 150 mm for first step and 355 mm for second step from the ground for Double Foot Step

• Length of Foot Step (mm): 401-450

• Width of Foot Step (mm): 426-450

• Thickness of Sheet for Top (mm): 1.0-5.0

• Size of Pipe (mm): 25

• Thickness of Pipe (mm): 1.2-5.0

• Material of Sheet of Top: Mild Steel

• Mild Steel Pipe for Frame Structure: Tabular

• Finish: Powder Coated

• Colour of Paint: Ivory White

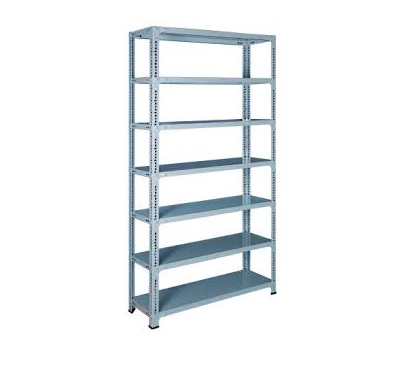

Metal Shelving Rack (NST-73)

GENERIC
Type OPEN TYPE
Pigeon Holes Without
Number of Shelves/Compartments 6 Nos Shelves + 1 Top Shelf
MATERIAL Shelves Material 1.2 mm Thick MS Sheet, Quality CR-1, Grade 340 of IS 51
Sides, Back and Partition Wall Thickness No, Without Side, Back and Partition
DIMENSION
Depth in mm (±5 mm) 300 mm
Width in mm (±5 mm) 700 mm
Height in mm (±5 mm) 2175 mm
CERTIFICATION
Conformity to Indian Standard IS: 1883 Latest
MISC
Paint Powder coated
WARANTEE 2 Years

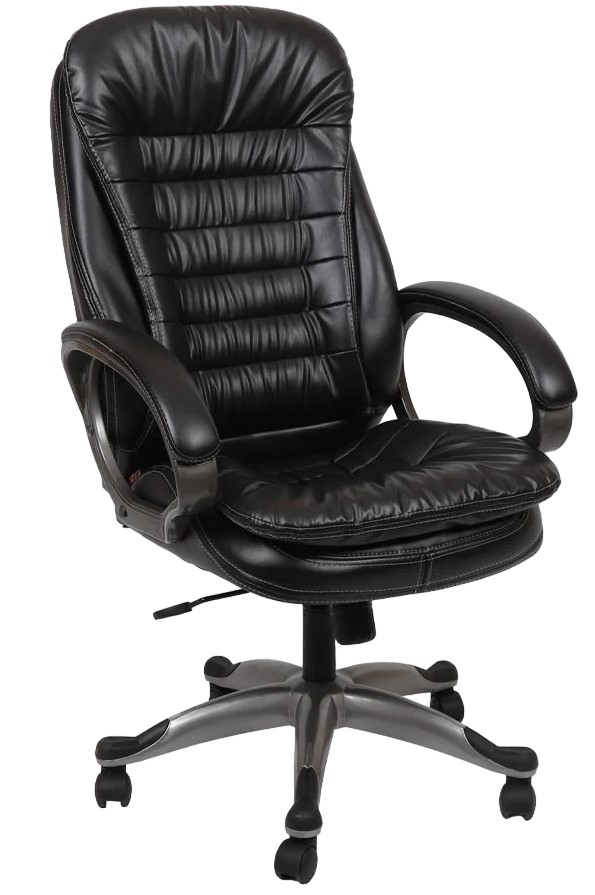

Revolving Chair (NST-71.01)

GENERAL REQUIREMENT
Type of chair: High Back
UNDERSTRUCTURE
Tilt mechanism: Active bio synchro mechanism
Locking mechanism: Upright Locking
Seat depth adjustment: Adjustable
Revolving mechanism : Designed with revolving type with auto return
Pedestal base : Aluminium die cast
Minimum thickness (in mm) of MS Plate Joining the backrest -
-with seat of the chair : 3 mm
SEAT
Seat material : PU Foam
Density of PU used in seat (kg per cubic meter) : <=30
Thickness of PU used in seat (mm) : <=30
Minimum seat height from floor surface (mm) : <=400
Width of seat (mm) : <=400
Depth of seat (mm) : <=400
Seat upholstery material : Mesh fabric
BACKREST
Backrest type : Flexi Back
Backrest height : Fixed
Backrest support type : Adjustable lumber support
Backrest base frame material : Mild steel frame
Density of PU used in backrest (kg per cubic meter) : NA
Thickness of PU used in backrest (mm) : NA
Width of backrest (mm) : <=400
Backrest height from the seat level : >=350<=450
Backrest upholstery material : Mesh fabric
ARMREST
Armrest type and arm movement : Fixed
WARRANTY : 1 Year

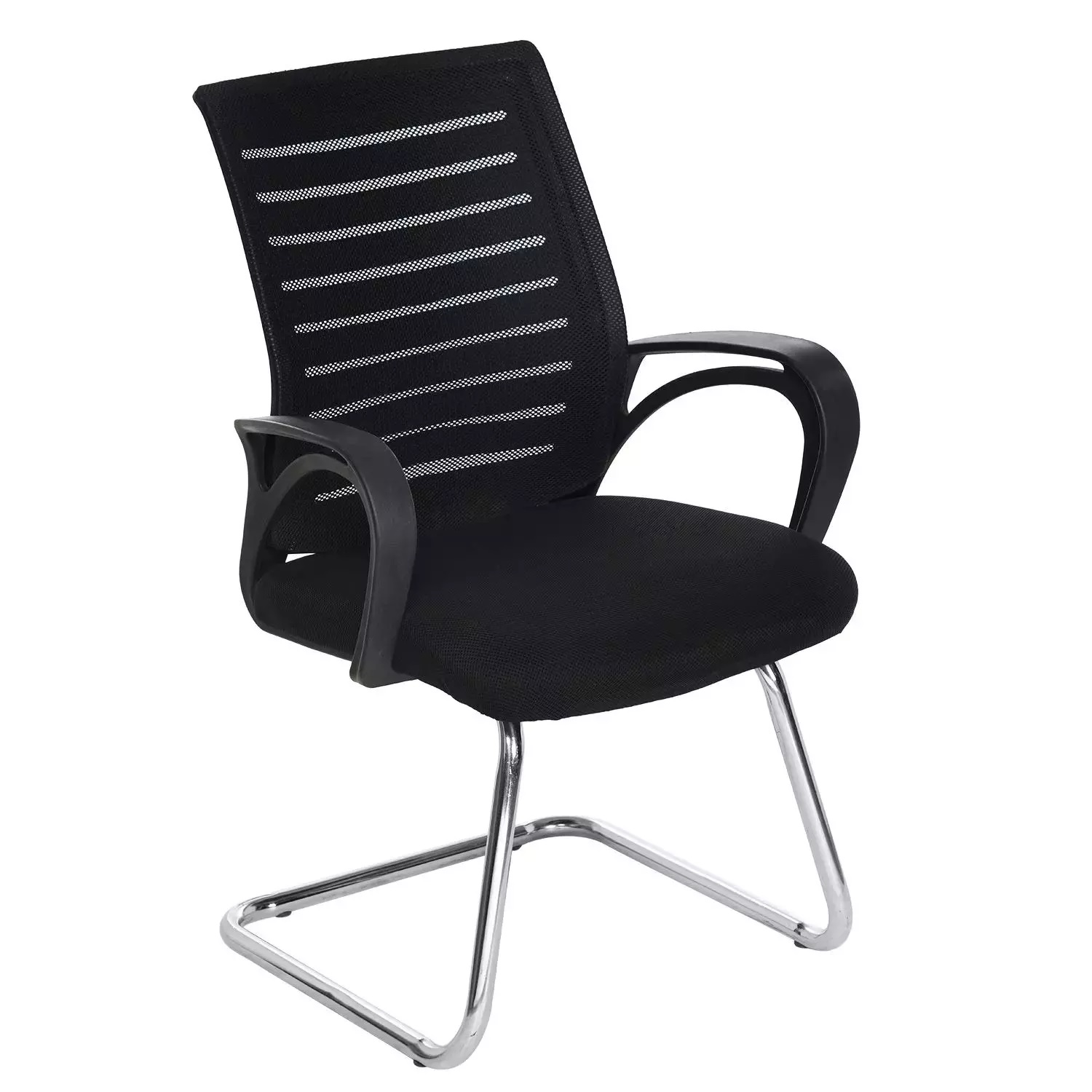

Office Chair (NST-72.01)

GENERAL REQUIREMENT
Chair type: Non-revolving and non-tilting chair with armrest

UNDERSTRUCTURE
Chair understructure type : Cantilever
Understructure material : ERW tube conforming to IS : 1161 latest
The shape of tubular section of understructure : Round
Section Size (Diameter/Sides) of understructure : 25 mm
Understructure wall thickness (mm) : 2
Castor : No

SEAT
Seat material : PU Foam
Density of PU used in seat (kg per cubic meter) : >40<=50
Thickness of PU used in seat (mm) : >30<=40
Minimum seat height from floor surface (mm) : >400<=500
Width of seat (mm) : >450
Depth of seat (mm) : >450
Seat upholstery material : Polyester fabric

BACKREST
Backrest base frame material : Mild steel frame
Backrest material : Mesh
Density of PU used in backrest (kg per cubic meter) : NA
Thickness of PU used in backrest (mm) : NA
Width of backrest (mm) : <=450
Backrest height from the seat level : <=550
Backrest upholstery material : Mesh fabrics

ARMREST
Armrest type : Overhanging armrest
Armrest movement : Fixed

WARRANTY
Warranty period : 5 years
